Derby Corporation Tramways 1 built 1903
|
|
| Derby Corporation Tramways 1 built 1903 |
| Present Location |
Clay Cross |
| Designed For |
Derby Corporation Tramways |
| Built |
1903 |
| Built By |
Brush |
| Where Built |
Loughborough |
| General Type |
Open-top electric car |
| First Number |
1 |
| Present Number |
1 |
| Status |
Static Display |
| Condition |
Fair |
| Operating |
No |
| Storage |
Under cover |
| Controllers |
BTH K10 |
| Motors |
GE52 2 x 27hp |
| Truck |
UEC 21E |
| Gauge |
4ft 8½in |
| Seats (Downstairs//Upstairs) |
22/26 |
| Rarity |
Several |
| Importance |
Very Significant |
| Additional Notes |
top cover and vestibules fitted 1928; withdrawn 8/1933; to summerhouse Mickleover 9/1933; P.9/1962; to Clay Cross 12/1970; to Crich 4/1991; originally on 4ft gauge Brush AA truck, regauged on restoration; to Clay Cross 6/2021 |
| Inspected By |
PA |
| Main Photo Taken By |
Paul Abell |
| Date of Image |
02/05/2021 |
| At Risk |
No |
| Record Last Updated |
14/06/2021 |
|
|
| Paul Abell 02/05/2021 Upper Deck |
|
|

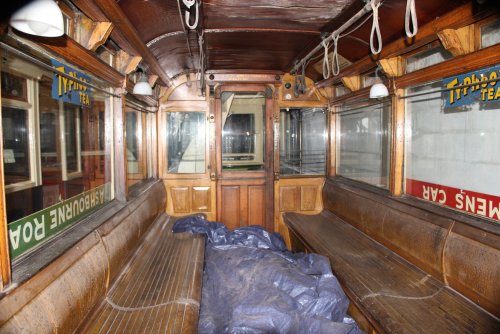

| Paul Abell 02/05/2021 Lower Deck |
|
